TEXT VERSION OF SLIDE:

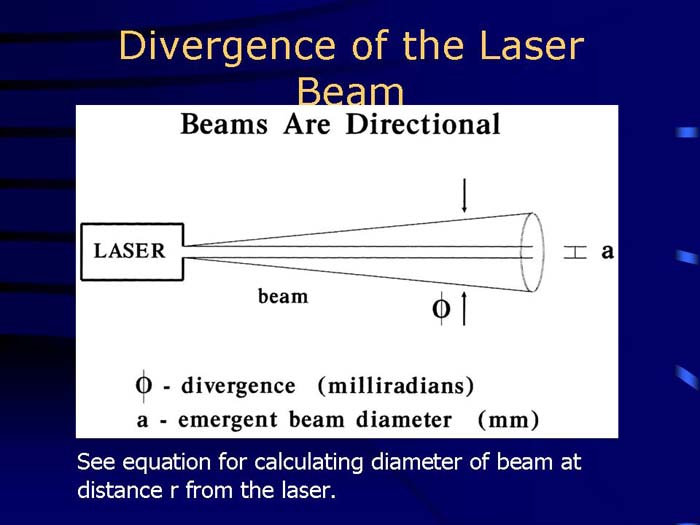

Title: Divergence of the Laser Beam
Type: Picture Slide
Content: Includes illustration of a laser beam titled "Beams are Directional." The following are identified in the illustration:
Φ - divergence (milliradians)
a - emergent beam diameter (mm)
See equation for calculating diameter of beam at distance r from the laser.
